A wireless data logger
for fun, easy, and
real scientific experiments.
No installation required
Use the Artec Logger web
app with Google Chrome
★Download available for offline use.
★Separate app required for iOS.
Supports
Chrome OS / iOS
Windows / macOS / Android
Works on the device of your
choice whether laptop,
desktop, or tablet.
Choose Your Sensor
Pick from a range of plug-and-play
sensors and connect up to three
for your experiments.
Climate
Current
Voltage
Water Temp
Oxygen
Distance
Connect up to
3
sensors!
01
Wireless
Connect wirelessly to your PC or tablet and view live graphs of your data.
02
Compact
Compact enough to fit into or on top of scientific instruments and equipment.
03
Dual-Mode
Check your measurements in real time using Live Mode or log experiment data in Loggin Mode.
04
Multilogging
Connect up to three sensors to chart the relationship between pressure and humidity, voltage and amperage, and more.
05
Live Capture
Overlay graphs with live footage of your experiment.
06
Simple Export
Save your graphs as an image or your data as a convenient, Excel-friendly CSV file.
Artec Logger Specifications
  • Dimensions: 40 x 60 x 20 mm
  • Sensor Ports: 3
    (I2C: x 1, Analog I/O x 2)
  • SoC: ESP32
  • WiFi: 802.11b/g/n
  • Bluetooth: Classic, Bluetooth 4.2
  • Flash Memory: 4MB
  • SRAM: 520KB
  • Clock Speed: 240MHz
  • Operating Voltage: 3.3V
  • Communication Protocol: BLE USB to Serial IC
  • Analog Resolution: 12 bit
  • Power Supply: Internal 600 mAh lithium
    polymer battery(4.5 hour charge time)
    or USB micro B cable
  • Runtime: 12hours (at 1 second measurement interaval in Live Mode)
  • Logging interval (min.): 0.04ms (25 samples/s)
Specifications

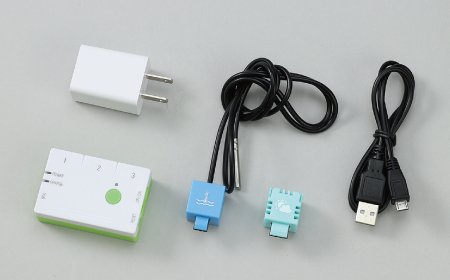

Artec Logger Set I
#93191
Artec Logger
1
Artec Logger Climate Sensor
1
Artec Logger Water Temperature Sensor
1
USB (A-microB, 80cm)
1
USB AC Adapter
1
Climate
Sensor
Water
Temp
Sensor
Includes case!

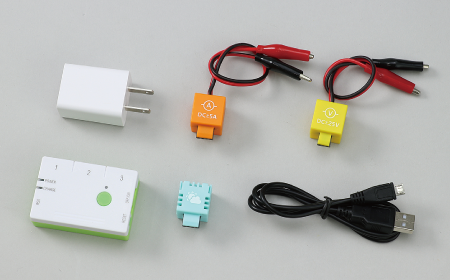

Artec Logger Set II
#93191
Artec Logger
1
Artec Logger Climate Sensor
1
Artec Logger Current Sensor
1
Artec Logger Voltage Sensor
1
USB (A-microB, 80cm)
1
USB AC Adapter
1
Climate
Sensor
Current
Sensor
Voltage
Sensor
Includes case!
